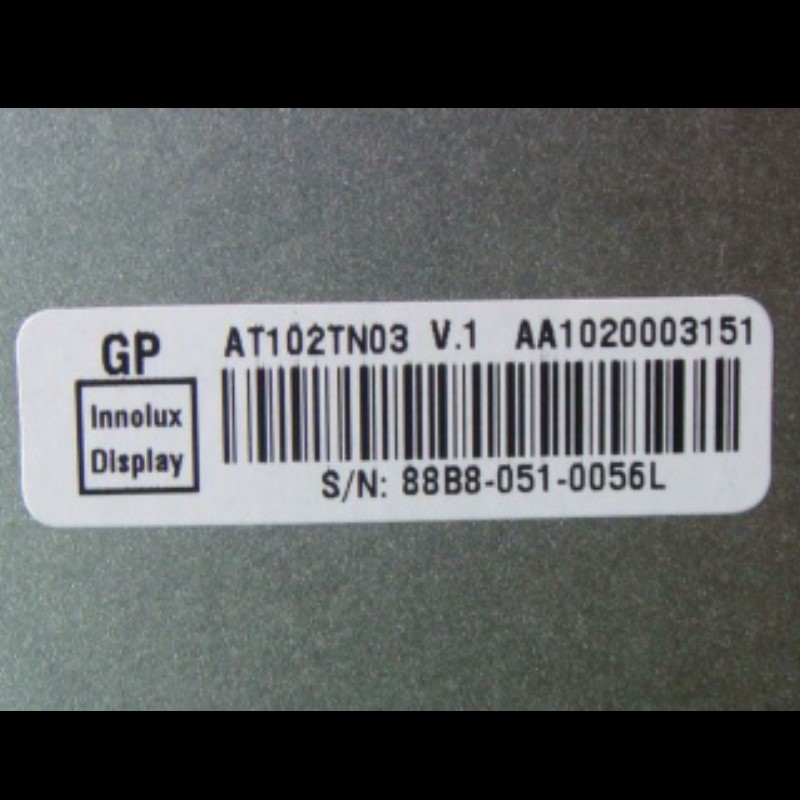

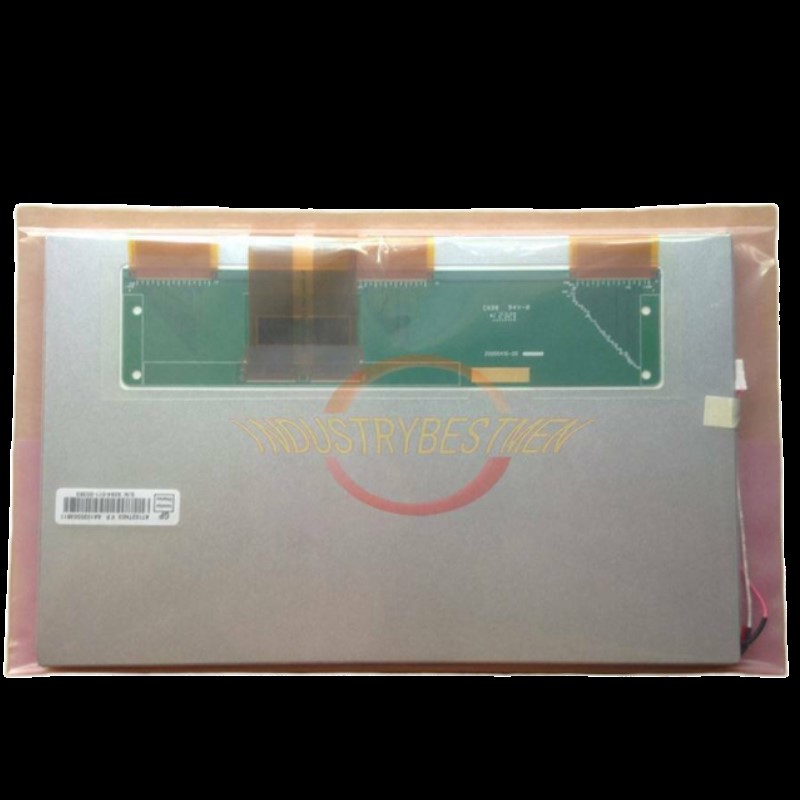

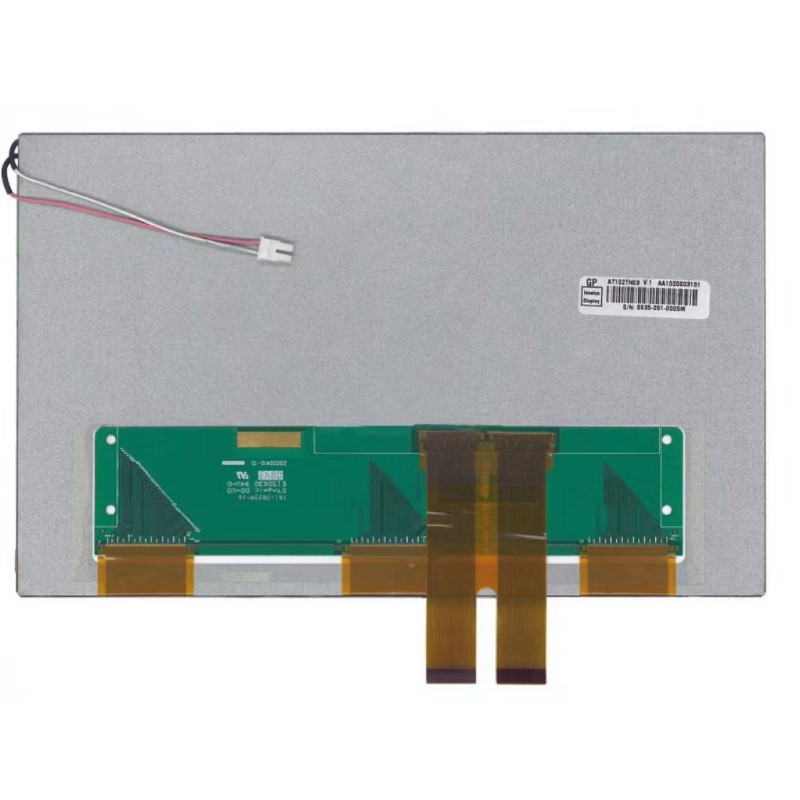

Model P/NAT102TN03 V.1
Diagonal Size10.2"Panel Typea-Si TFT-LCD, LCM
Resolution800(RGB)×480, WVGA 91PPI Pixel FormatRGB Vertical Stripe
Active Area222(W)×132.48(H) mmBezel Opening225.4(W)×135.9(H) mm
Outline (mm)235×145.8×6.4 (H×V×D)TreatmentAntiglare
Luminance250 cd/m² (Typ.)Contrast Ratio300 : 1 (Typ.) (TM)
Viewing Angle65/65/45/65 (Typ.)(CR≥10) Left / Right / Up / DownResponse15/20 (Typ.)(Tr/Td) ms
Good View at6 o'clockWork ModeTN, Normally White, Transmissive
Color Depth262K Backlight3S13P WLED , 20K hours , No Driver
Mass335g (Typ.)
